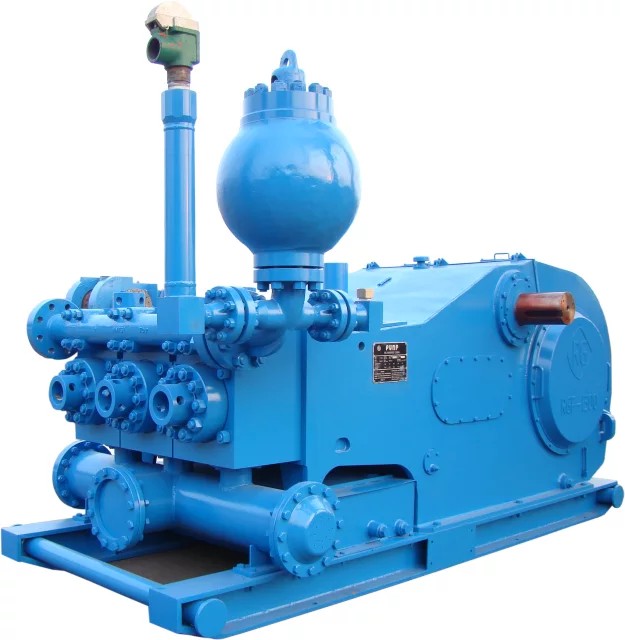

F500 F800 F1000 F1300 F1600 MUD PUMP

สอบถามข้อมูลเพิ่มเติม

Category

รายละเอียดเพิ่มเติม

F-SERIES MUD PUMPS

Model F-500 F-800 F-1000 F-1300 F-1600
Type Triplex single acting Triplex single acting Triplex single acting Triplex single acting Triplex single acting
Rated Power 373KW/500HP 597KW/800HP 746KW/1000HP 969KW/1300HP 1193KW/1600HP
Rated Strokes 165 SPM 150 SPM 140 SPM 120 SPM 120 SPM
Stroke(mm/in) 190.5/7 1/2″ 228.6/9″ 254/10″ 305/12″ 305/12″
(mm/in) Max.Liner Dia 170/6 3/4″ 170/6 3/4″ 170/6 3/4″ 180/7″ 180/7″
Gear Type Herringbone Herringbone Herringbone Herringbone Herringbone
Valve Pot API-5# API-6# API-6# API-7# API-7#
Gear Ratio 4.286:1 4.185:1 4.207:1 4.206:1 4.206:1
Suction Inlet(mm/in) 203/8″ 254/10″ 305/12″ 305/12″ 305/12″
Discharge Inlet(in) 4″Flange 5000 psi 5″Flange 5000 psi 5″Flange 5000 psi 5″Flange 5000 psi 5″Flange 5000 psi
Max. Pressure 27.2Mpa 35Mpa 35Mpa 35Mpa 35Mpa
3945 psi

5000 psi

 5000 psi 5000 psi 5000 psi
Overall Size(mm/in) 3658*2709*2231

144″*106″*88″

 3963*3025*2410

156″*119″*95″

 4267*3167*2580

168″*125″*102″

 4617*3260*2600

182″*128″*102″

 4615*3276*2688

182″*129″*106″
Weight(kg) 9770 14500 18790 24572 24791
